Features

Detecto’s in-bed scales feature flame-retardant, antibacterial 6 ft (1.8 m) long stretchers which are placed underneath the patient and hydraulically lifted inches from the bed for weighing. They feature locking casters, adjustable weighing arm, and American-made steel construction. The ZERO key allows staff to easily subtract the weight of bedding for accurate patient measurement. Six AA alkaline batteries (not included) or an optional AC adapter. Not for transport. EMR/EHR ready..

• Hydraulic lift mechanism eases lifting
• Two models to choose from
• RS232 serial connectivity: EMR / EHR ready
• Stretcher carrying strap and “easy stow” hoops

The model 750 digital weight indicator for Detectos IB series in-bed scales features EMR/EHR-ready serial connectivity, Body Mass Index calculation, LOCK/RELEASE key for weight retention, and large 0.75-in/19-mm high LCD digits for big, bold readouts. The scale is powered by 6 AA batteries (not included) or an optional AC adapter.

Full-Swivel Ball Bearing Casters

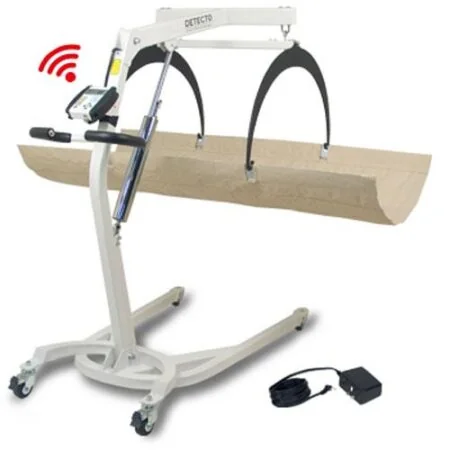

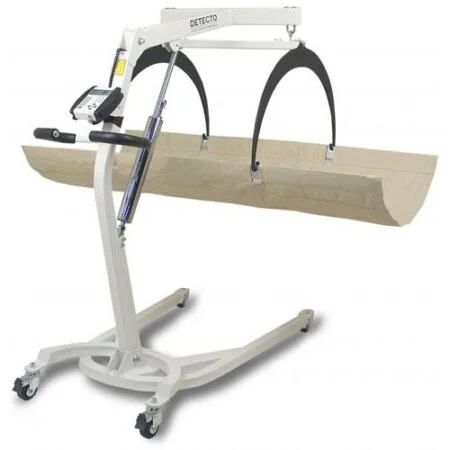

The model IBFL500 with fixed legs, the rolling casters feature a rear locking pair for security during weighing

Hydraulic Lift Eases Patient Lifting
Detectos IB scales feature hydraulic lift mechanisms for fast, easy, and efficient weighing of bedridden non-ambulatory patients

Scale Connectivity for Patient Records
Detectos IB series has the ability to interface with a computer, monitor, printer, or other electronic devices via RS232 serial connectivity for fast and easy data transfer.

Self-Contained Mobile Patient Weighing
Integral stretcher carrying straps and cups plus “easy stow” hoops make the IB series ready for transport. Replacement stretchers are also available.

AMERICAN-MADE, QUALITY CONSTRUCTION

Detecto’s digital in-bed scales feature Sure-Check® flame-retardant, anti-bacterial 6 ft / 1.8 m long stretchers which are placed underneath the patient and hydraulically lifted inches from the bed for weighing. They feature locking casters, adjustable weighing arm, and sturdy steel construction. The model IB800 features a base widening stance for added stability. The ZERO key allows staff to easily subtract the weight of bedding. The IBFL500 and IB800 are not for patient transport.

Features

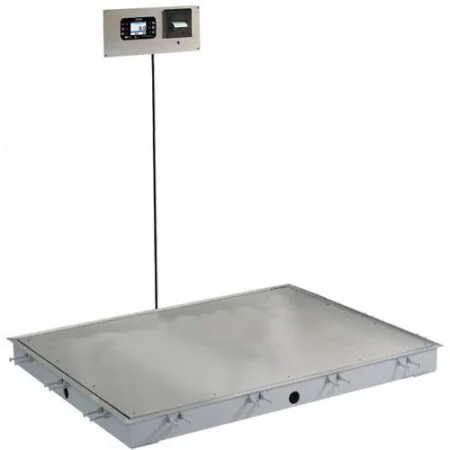

DETECTO’s Solace series USA-made in-floor dialysis scales are flush-mounted platform scales that feature stainless steel decks and include a pit frame, trim ring, and interface cable to the included multi-color, touchscreen LCD indicator and printer. The flush surface eliminates tripping hazards and hallway accessibility issues. The Solace series is available with or without a handrail and all models include a recessed-mount indicator and ticket printer combination. These in-floor scales with high 1,000-lb x 0.2-lb/450-kg x 0.1-kg capacity easily accommodate patients with walkers, canes, wheelchairs, dialysis chairs, and the 6 x 4 ft. size even accommodates stretchers. The Solace series comes in 8 standard models to choose from with 3 x 3 ft, 4 x 3 ft, 4 x 4 ft, and 6 x 4 ft stainless steel platform sizes (custom sizes/configurations available). DIALYSIS + BARIATRIC WEIGHING

• 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity
• 8 standard models to choose from
• Handrails available for patient stability while weighing
• Indicator/printer, pit frame, scale, and trim ring included
• Standard platform sizes: 3 x 3 ft, 4 x 3 ft, 4 x 4 ft, and 6 x 4 ft
• Custom sizes and configurations are available
• USA-made quality construction

DETECTO’s Solace series in-floor scales are covered with durable stainless steel to provide years of maintenance-free use. The built-in thermal printer makes it easy to print out a weight record for patient recordkeeping.

• Multi-color, touchscreen LCD display
• Built-in thermal ticket printer (included)
• Displays weight, height, and BMI onscreen simultaneously
• Large 0.9-inch-high, clinicalblue LCD weight digits
• Push button or manual entry of tare weights for wheelchairs and stretchers
• Automatically locks on weight temporarily for a few seconds in order to easily view and record measurement
• Menu button provides quick access to user-friendly menu settings for scale customization
• Standard 110V AC power 110V – 240V AC universal switching power supply

The Solace series in-floor scale’s ticket printer can print Gross, Tare, Net and Patient IDs for record keeping

The Solace series is flush mounted with the floor and includes the pit frame and trim ring, plus an interface cable from the scale to indicator

Complete in-floor scale package for continuous patient weight monitoring

DETECTO’s Solace series in-floor scales are ideal for dialysis clinics, emergency rooms, and clinical facilities where fast, efficient patient measurement is necessary

In-floor scales come with model 855RMP digital weight indicator/ printer combo, pit frame, scale, stainless steel deck, and trim ring. Custom sizes and configurations are available.

Dimensions
X: 54.75   Y: 54.75   Z: 16.00
