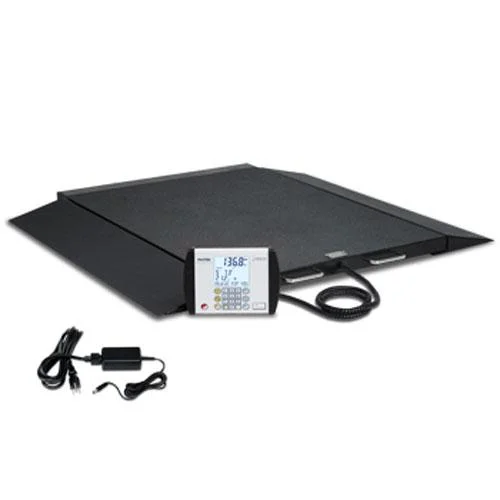

Detecto BRW-1000AC Portable Wheelchair Bariatric Scale with AC Adapter WIFI BT
$4,824.71
Features
Accommodating new EXTRA-WIDE wheelchairs, Detecto’s BRW1000 provides everything required for weighing bariatric patients. For extended patient comfort, the BRW1000 can store the weight of the chair, allowing clinical staff to simply roll the patient on the scale for quick and easy weighing. Detecto’s BRW1000 provides comfort for the patient and saves valuable time in busy healthcare facilities. Heavy-duty construction, a large rubber deck safety plate platform with an integral ramp, and the 1,000 lb capacity make this the perfect scale for weighing patients in manual or power wheelchairs, dialysis patients, or walk-ons.
Light in Weight… Heavy in Capacity
Features & Specs:
- EMR-ready serial connectivity
- Pushbutton and keypad tare
- Body Mass Index (BMI) calculation
- Selectable key lockout
- ID storage with and without a known tare weight
- Capacity: 1000 lb x 0.5 lb (450 kg x 0.2 kg)
- Platform width: 40 inches (accommodates bariatric wheelchairs)
- Display: 0.7-inch high contrast LCD for wall or table mount
- Power source: 6 C alkaline or nickel-cadmium cells (not included) or optional AC adapter
- Includes the Detecto 758C indicator
- The BRW1000s integral handles make it easy to lift and lower into position. Built-in wheels permit the scale to be rolled anywhere it’s needed.
- The extra-wide platform easily accommodates bariatric wheelchairs up to 40 wide.
Detecto 758C Indicator for Digital Medical Scales
Detecto digital medical scales come standard with the enhanced 758C weight display. The new 758C includes a standard serial port for data output to a printer or a PC-based EMR (electronic medical record) software program. With the new time/date feature, the scale can send the weight, time, date, BMI (Body Mass Index), and height directly to a printer or a PC. New black ABS plastic end caps have been added to the 758C further improving the overall appearance of each scale.
The ability to print or save weight data with the 758C is a real-time saving device for clinics, doctors’ offices, long-term care facilities, and other medical institutions. For example, in long-term care facilities and nursing homes, the assessment of patients’ weight is crucial to reimbursement from Medicare/Medicaid. Monitoring and documenting of weight is also important to renal departments, weight loss clinics, and other specialized departments.
Serial Connectivity Provides:
- Output to Printer — print BMI, weight, time, and date
- Send Data to PC — excellent for medical record keeping
Specs:
- Display: Liquid Crystal, Reflective Type
- Enclosure: Painted Steel
- Keypad: 19 key, color-coded, sealed membrane
- BMI Range: 15.0 to 60.0
- Height Range: 3 to 7 feet (90 to 215 cm)
- Sensitivity: 1.2 µV/d
- Resolution: 5,000 divisions, maximum
- Accuracy: Class III
- Power: 6 “C” size Alkaline or Nickel-Cadmium cells (not included) or optional AC adapter
- Temperature Range: +14 to +104 °F / -10 to +40 °C
All Variations
| SKU | Name | Availability | Specifications | Description | Price | Price Per | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|
| SKU: BRW1000-C-AC-W | Name: Detecto BRW-1000AC Portable Wheelchair Bariatric Scale with AC Adapter WIFI BT | Availability: instock | Specifications: | Description: Detecto BRW1000-C-AC-W Portable Wheelchair Bariatric Scale with WiFi / Bluetooth with a AC Adapter 32 in x 40 in - 1000 lb x 0.2 lb | Price: $4,824.71 | Price Per: | ||
| SKU: BRW1000 | Name: Detecto BRW-1000AC Portable Wheelchair Bariatric Scale with AC Adapter WIFI BT – With BT / WIFI and AC adaptor | _stock_status: instock | Specifications: With BT / WIFI and AC adaptor | Description: Model BRW1000 BRW1000-AC BRW1000-C BRW1000-C-AC Capacity x Readability 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb 450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg Platform Size 32 in x 40 in x 2.2 in 81 cm x 101 cm x 5.6 cm Ramp Size 40 in W x 7.9 in L each 101 cm W x 20.2 cm L each Cable Length 6 ft / 1.8 m coiled cable, 14 ft / 4.2 m fully extended (from scale to indicator) Power Optional model 6800-1045 AC adapter or 6 AA batteries (not included AC adapter(included) or 6 AA batteries (not included Optional model 6800-1045 AC adapter or 6 AA batteries (not included AC adapter(included) or 6 AA batteries (not included Indicator MedVue® Model MV1 Indicator Dimensions 9.8 in W x 6.8 in H x 1.8 in D 24.9 cm W x 17.2 cm H x 4.6 cm D LCD Digits 0.9 in / 22 mm high LCD, 5 digit, 7 segment Keypad Buttons ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys Connectivity RS232 serial and USB RS232 serial and USB RS232 serial, USB, and WiFi/Bluetooth RS232 serial, USB, and WiFi/Bluetooth Net Weight 92 lb / 42 kg Shipping Weight 102 lb / 46 kg Guide Handles 2 included Transport Wheels 2 included Country of Origin USA UPC Code 809161139303 809161318104 809161320008 809161325300 Model 6400 6500 6600 BRW1000 Capacity x Readability 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb 1000 lb x 0.2 lb 450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg 450 kg x 0.1 kg Platform Size 32 in x 36 in x 2.2 in 32 in x 40 in x 2.2 in 81 cm x 91 cm x 5.6 cm 81 cm x 101 cm x 5.6 cm Ramp Size 36 in W x 7.9 in L each 40 in W x 7.9 in L each 91 cm W x 20.2 cm L each 101 cm W x 20.2 cm L each Cable Length 6 ft / 1.8 m coiled cable, 14 ft / 4.2 m fully extended (from scale to indicator) Power Optional model 6800-1045 AC adapter or 6 AA batteries (not included Optional model MV1PWR AC adapter or 6 C batteries (not included) Optional model 6800-1045 AC adapter or 6 AA batteries (not included) Optional model MV1PWR AC adapter or 6 C batteries (not included) Indicator Model 750 MedVue® Model MV1 Model 750 MedVue® Model MV1 Indicator Dimensions 6.1 in W x 6.8 in H x 1.8 in D 15.5 cm W x 17.2 cm H x 4.6 cm D 9.8 in W x 6.8 in H x 1.8 in D 24.9 cm W x 17.2 cm H x 4.6 cm D 6.1 in W x 6.8 in H x 1.8 in D 15.5 cm W x 17.2 cm H x 4.6 cm D 9.8 in W x 6.8 in H x 1.8 in D 24.9 cm W x 17.2 cm H x 4.6 cm D LCD Digits 0.7 in / 19 mm high LCD, 6 digit, 7 segment 0.9 in / 22 mm high LCD, 5 digit, 7 segment 0.7 in / 19 mm high LCD, 6 digit, 7 segment 0.9 in / 22 mm high LCD, 5 digit, 7 segment Keypad Buttons ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys Connectivity RS232 serial RS232 serial, USB and optional wired and Wi-Fi Ethernet RS232 serial RS232 serial, USB and optional wired and Wi-Fi Ethernet Operating Temperature 14 to 104 ºF / -10 to +40 ºC Net Weight 92 lb / 42 kg 117 lb / 53 kg Shipping Weight 102 lb / 46 kg 127 lb / 58 kg Guide Handles 2 included Transport Wheels 2 included Country of Origin USA | Price: $4,824.71 | variation_pricing_suffix: | ||
| SKU: BRW1000-AC | Name: Detecto BRW-1000AC Portable Wheelchair Bariatric Scale with AC Adapter WIFI BT – With AC Adaptor | _stock_status: instock | Specifications: With AC Adaptor | Description: BRW1000-AC Features Accomodating new EXTRA-WIDE wheelchairs, Detecto’s BRW1000 provides everything required for weighing bariatric patients. For extended patient comfort, the BRW1000 can store the weight of the chair, allowing clinical staff to simply roll the patient on the scale for quick and easy weighing. Detecto’s BRW1000 provides comfort for the patient and saves valuable time in busy healthcare facilities. Heavy-duty construction, large rubber deck safety plate platform with integral ramp, and the 1,000 lb capacity makes this the perfect scale for weighing patients in manual or power wheelchairs, dialysis patients, or walk-ons. Light in Weight... Heavy in Capacity Features & Specs: EMR ready serial connectivity Pushbutton and keypad tare Body Mass Index (BMI) calculation Selectable key lockout ID storage with and without a known tare weight Capacity: 1000 lb x 0.5 lb (450 kg x 0.2 kg) Platform width: 40 inches (accommodates bariatric wheelchairs) Display: 0.7 inch high contrast LCD for wall or table mount Power source: 6 C alkaline or nickel-cadmium cells (not included) or optional AC adapter Includes the Detecto 758C indicator The BRW1000s integral handles make it easy to lift and lower into position. Built-in wheels permit the scale to be rolled anywhere it’s needed. The extra-wide platform easily accommodates bariatric wheelchairs up to 40 wide. Detecto 758C Indicator for Digital Medical Scales Detecto digital medical scales come standard with the enhanced 758C weight display. The new 758C includes a standard serial port for data output to a printer or a PC-based EMR (electronic medical record) software program. With the new time/date feature, the scale can send the weight, time, date, BMI (Body Mass Index), and height directly to a printer or a PC. New black ABS plastic end caps have been added to the 758C further improving the overall appearance of each scale. The ability to print or save weight data with the 758C is a real time saving device for clinics, doctors offices, long-term care facilities, and other medical institutions. For example, in long-term care facilities and nursing homes, the assessment of patients weight is crucial to reimbursement from Medicare/Medicaid. Monitoring and documenting of weight is also important to renal departments, weight loss clinics, and other specialized departments. Serial Connectivity Provides: Output to Printer -- print BMI, weight, time and date Send Data to PC -- excellent for medical record keeping Specs: Display: Liquid Crystal, Reflective Type Enclosure: Painted Steel Keypad: 19 key, color coded, sealed membrane BMI Range: 15.0 to 60.0 Height Range: 3 to 7 feet (90 to 215 cm) Sensitivity: 1.2 µV/d Resolution: 5,000 divisions, maximum Accuracy: Class III Power: 6 “C” size Alkaline or Nickel-Cadium cells (not included) or optional AC adapter Temperature Range: +14 to +104 °F / -10 to +40 °C | Price: $4,824.71 | variation_pricing_suffix: | ||
| SKU: BRW1000-C | Name: Detecto BRW-1000AC Portable Wheelchair Bariatric Scale with AC Adapter WIFI BT – With BT / WIFI | _stock_status: instock | Specifications: With BT / WIFI | Description: Features Accomodating new EXTRA-WIDE wheelchairs, Detecto’s BRW1000 provides everything required for weighing bariatric patients. For extended patient comfort, the BRW1000 can store the weight of the chair, allowing clinical staff to simply roll the patient on the scale for quick and easy weighing. Detecto’s BRW1000 provides comfort for the patient and saves valuable time in busy healthcare facilities. Heavy-duty construction, large rubber deck safety plate platform with integral ramp, and the 1,000 lb capacity makes this the perfect scale for weighing patients in manual or power wheelchairs, dialysis patients, or walk-ons. Light in Weight... Heavy in Capacity Features & Specs: EMR ready serial connectivity Pushbutton and keypad tare Body Mass Index (BMI) calculation Selectable key lockout ID storage with and without a known tare weight Capacity: 1000 lb x 0.5 lb (450 kg x 0.2 kg) Platform width: 40 inches (accommodates bariatric wheelchairs) Display: 0.7 inch high contrast LCD for wall or table mount Power source: 6 C alkaline or nickel-cadmium cells (not included) or optional AC adapter Includes the Detecto 758C indicator The BRW1000s integral handles make it easy to lift and lower into position. Built-in wheels permit the scale to be rolled anywhere it’s needed. The extra-wide platform easily accommodates bariatric wheelchairs up to 40 wide. Detecto 758C Indicator for Digital Medical Scales Detecto digital medical scales come standard with the enhanced 758C weight display. The new 758C includes a standard serial port for data output to a printer or a PC-based EMR (electronic medical record) software program. With the new time/date feature, the scale can send the weight, time, date, BMI (Body Mass Index), and height directly to a printer or a PC. New black ABS plastic end caps have been added to the 758C further improving the overall appearance of each scale. The ability to print or save weight data with the 758C is a real time saving device for clinics, doctors offices, long-term care facilities, and other medical institutions. For example, in long-term care facilities and nursing homes, the assessment of patients weight is crucial to reimbursement from Medicare/Medicaid. Monitoring and documenting of weight is also important to renal departments, weight loss clinics, and other specialized departments. Serial Connectivity Provides: Output to Printer -- print BMI, weight, time and date Send Data to PC -- excellent for medical record keeping Specs: Display: Liquid Crystal, Reflective Type Enclosure: Painted Steel Keypad: 19 key, color coded, sealed membrane BMI Range: 15.0 to 60.0 Height Range: 3 to 7 feet (90 to 215 cm) Sensitivity: 1.2 µV/d Resolution: 5,000 divisions, maximum Accuracy: Class III Power: 6 “C” size Alkaline or Nickel-Cadium cells (not included) or optional AC adapter Temperature Range: +14 to +104 °F / -10 to +40 °C | Price: $4,824.71 | variation_pricing_suffix: | ||
| SKU: BRW1000-C-AC | Name: Detecto BRW-1000AC Portable Wheelchair Bariatric Scale with AC Adapter WIFI BT – With BT / WIFI and AC adaptor | _stock_status: instock | Specifications: With BT / WIFI and AC adaptor | Description: Features Accomodating new EXTRA-WIDE wheelchairs, Detecto’s BRW1000 provides everything required for weighing bariatric patients. For extended patient comfort, the BRW1000 can store the weight of the chair, allowing clinical staff to simply roll the patient on the scale for quick and easy weighing. Detecto’s BRW1000 provides comfort for the patient and saves valuable time in busy healthcare facilities. Heavy-duty construction, large rubber deck safety plate platform with integral ramp, and the 1,000 lb capacity makes this the perfect scale for weighing patients in manual or power wheelchairs, dialysis patients, or walk-ons. Light in Weight... Heavy in Capacity Features & Specs: EMR ready serial connectivity Pushbutton and keypad tare Body Mass Index (BMI) calculation Selectable key lockout ID storage with and without a known tare weight Capacity: 1000 lb x 0.5 lb (450 kg x 0.2 kg) Platform width: 40 inches (accommodates bariatric wheelchairs) Display: 0.7 inch high contrast LCD for wall or table mount Power source: 6 C alkaline or nickel-cadmium cells (not included) or optional AC adapter Includes the Detecto 758C indicator The BRW1000s integral handles make it easy to lift and lower into position. Built-in wheels permit the scale to be rolled anywhere it’s needed. The extra-wide platform easily accommodates bariatric wheelchairs up to 40 wide. Detecto 758C Indicator for Digital Medical Scales Detecto digital medical scales come standard with the enhanced 758C weight display. The new 758C includes a standard serial port for data output to a printer or a PC-based EMR (electronic medical record) software program. With the new time/date feature, the scale can send the weight, time, date, BMI (Body Mass Index), and height directly to a printer or a PC. New black ABS plastic end caps have been added to the 758C further improving the overall appearance of each scale. The ability to print or save weight data with the 758C is a real time saving device for clinics, doctors offices, long-term care facilities, and other medical institutions. For example, in long-term care facilities and nursing homes, the assessment of patients weight is crucial to reimbursement from Medicare/Medicaid. Monitoring and documenting of weight is also important to renal departments, weight loss clinics, and other specialized departments. Serial Connectivity Provides: Output to Printer -- print BMI, weight, time and date Send Data to PC -- excellent for medical record keeping Specs: Display: Liquid Crystal, Reflective Type Enclosure: Painted Steel Keypad: 19 key, color coded, sealed membrane BMI Range: 15.0 to 60.0 Height Range: 3 to 7 feet (90 to 215 cm) Sensitivity: 1.2 µV/d Resolution: 5,000 divisions, maximum Accuracy: Class III Power: 6 “C” size Alkaline or Nickel-Cadium cells (not included) or optional AC adapter Temperature Range: +14 to +104 °F / -10 to +40 °C | Price: $4,824.71 | variation_pricing_suffix: |
| Model | BRW1000 | BRW1000-AC | BRW1000-C | BRW1000-C-AC |
|---|---|---|---|---|
| Capacity x Readability | 1000 lb x 0.2 lb | 1000 lb x 0.2 lb | 1000 lb x 0.2 lb | 1000 lb x 0.2 lb |
| 450 kg x 0.1 kg | 450 kg x 0.1 kg | 450 kg x 0.1 kg | 450 kg x 0.1 kg | |
| Platform Size | 32 in x 40 in x 2.2 in | |||
| 81 cm x 101 cm x 5.6 cm | ||||
| Ramp Size | 40 in W x 7.9 in L each | |||
| 101 cm W x 20.2 cm L each | ||||
| Cable Length | 6 ft / 1.8 m coiled cable, 14 ft / 4.2 m fully extended (from scale to indicator) | |||
| Power | Optional model 6800-1045 AC adapter or 6 AA batteries (not included | AC adapter(included) or 6 AA batteries (not included | Optional model 6800-1045 AC adapter or 6 AA batteries (not included | AC adapter(included) or 6 AA batteries (not included |
| Indicator | MedVue® Model MV1 | |||
| Indicator Dimensions | 9.8 in W x 6.8 in H x 1.8 in D 24.9 cm W x 17.2 cm H x 4.6 cm D | |||
| LCD Digits | 0.9 in / 22 mm high LCD, 5 digit, 7 segment | |||
| Keypad Buttons | ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys | |||
| Connectivity | RS232 serial and USB | RS232 serial and USB | RS232 serial, USB, and WiFi/Bluetooth | RS232 serial, USB, and WiFi/Bluetooth |
| Net Weight | 92 lb / 42 kg | |||
| Shipping Weight | 102 lb / 46 kg | |||
| Guide Handles | 2 included | |||
| Transport Wheels | 2 included | |||
| Country of Origin | USA | |||
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Specifications | 1 Box, 2 Box, 3 Box, Controller, DEHP-Free, Kangaroo™ ePump 100 mL Burette Recertification Set (not ENFit™), Kangaroo™ ePump 1000 mL Feed Set with 1000 mL Flush Bag, Kangaroo™ ePump 1000 mL Pump Set, Kangaroo™ ePump 500 mL Feed Set with 500 mL Flush Bag, Kangaroo™ ePump 500 mL Pump Set, Kangaroo™ ePump ENPlus Spike Set, Kangaroo™ ePump ENPlus Spike with 1000 mL Flush Bag, Kangaroo™ ePump Sterile 100 mL Burette Set, Magnetic Programming Key FOB, NA, Reset Button, Single Use Wristband, Single-tipped, Tubing Set, With AC Adaptor, With BT / WIFI, With BT / WIFI and AC adaptor, Wristband Transmitters |
